Valve control DA26

  • Product category: Electronic products

The perfect link

DA26 converts CAN messages with lever data and safety function data into pulse width modulated current, PWM and is a direct link between remote control and valve.

Depending on lever angle the DA26 supplies the positioner solenoid on the control valve with proportional current from 0 to 500 mA which in turn controls the valves spool position.

Proportionality at every stage provides superior command and control characteristic.

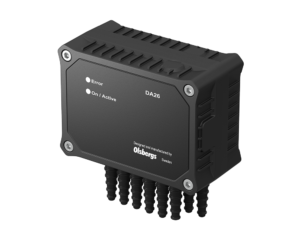

Valve control DA26

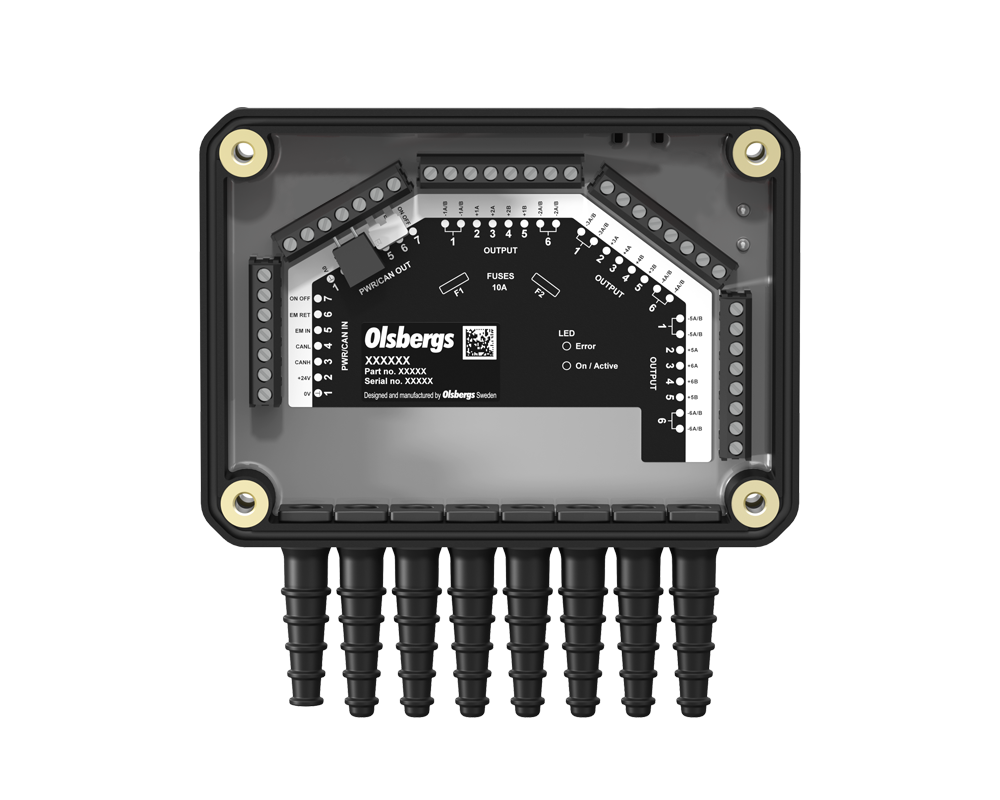

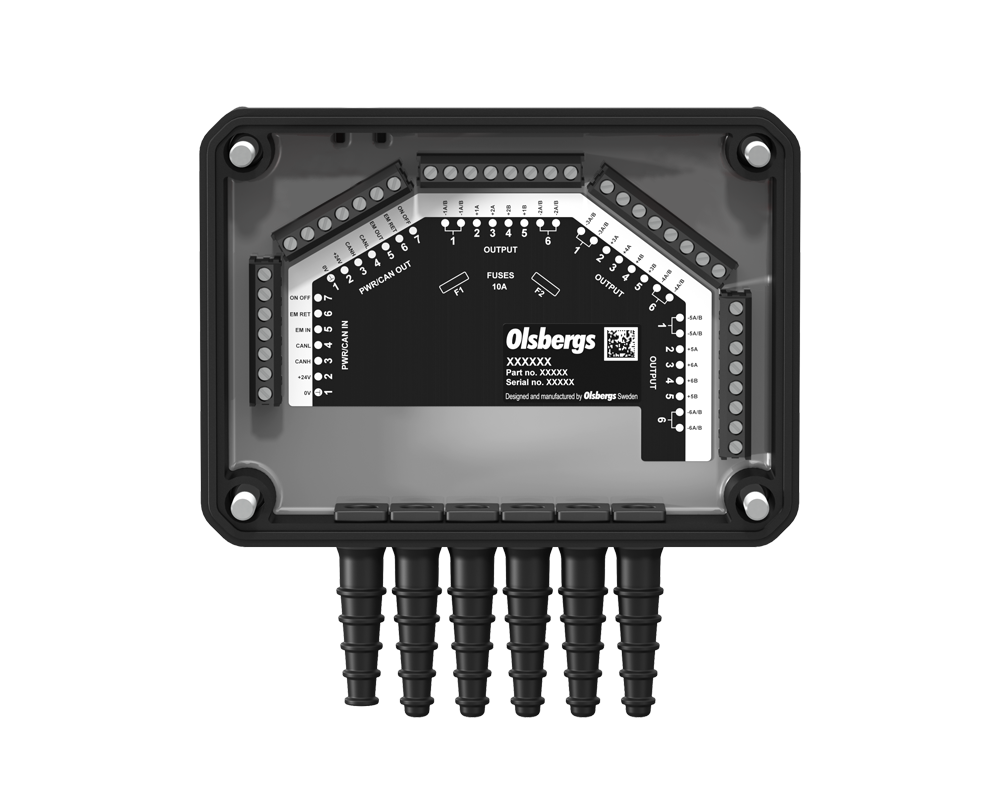

DA26 has a modular design, top and bottom. Each top and bottom can control up to six hydraulic functions in two directions. The unit is configured based upon the number of outputs needed.

Status is indicated via two LEDs per modul.

Cablings to the positioners on the hydraulic valve

DA26 is mounted on a suitable location and from there cables go out to the control valve/valves.

DA26 is often mounted in a tough environment and is designed according to IP67 for good protection against damp, dust and dirt.

Power supply: 16 – 32 V
Max. current consumption per output: 1,5 A
Fused: 10 A
CAN Bus speed: 125 kbit/s
